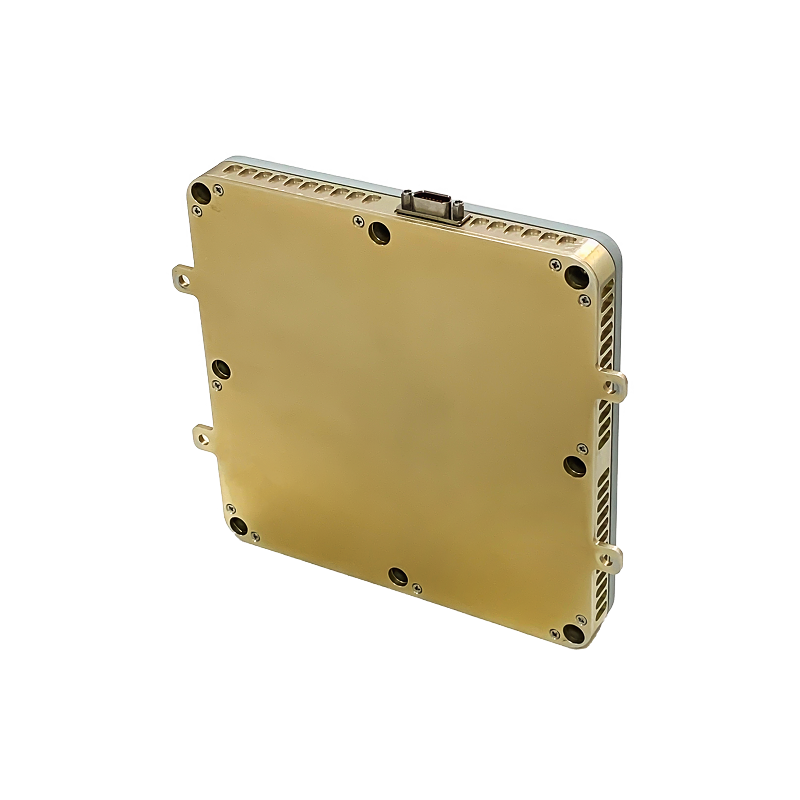

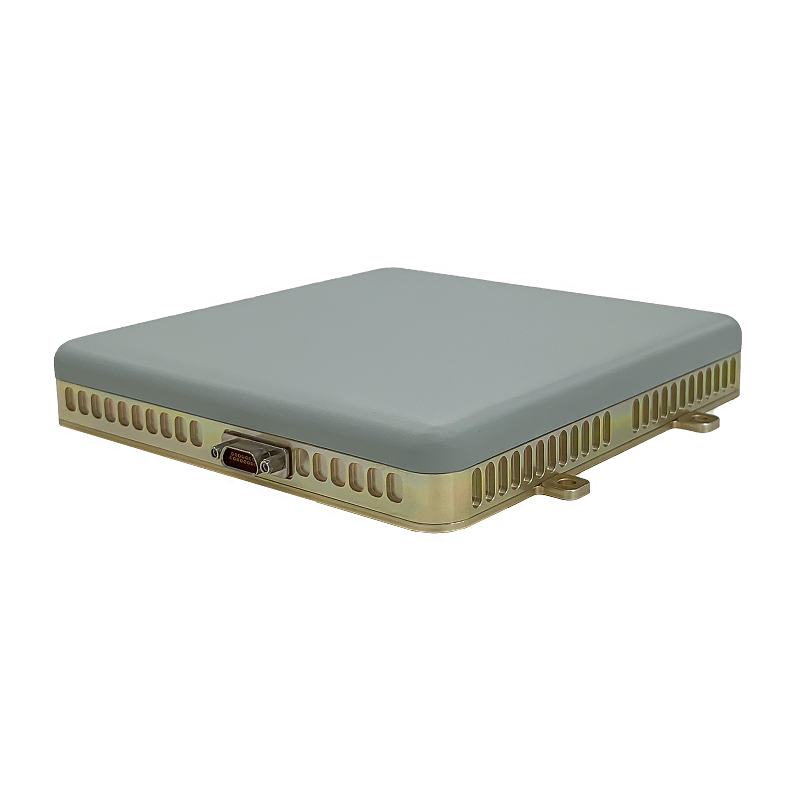

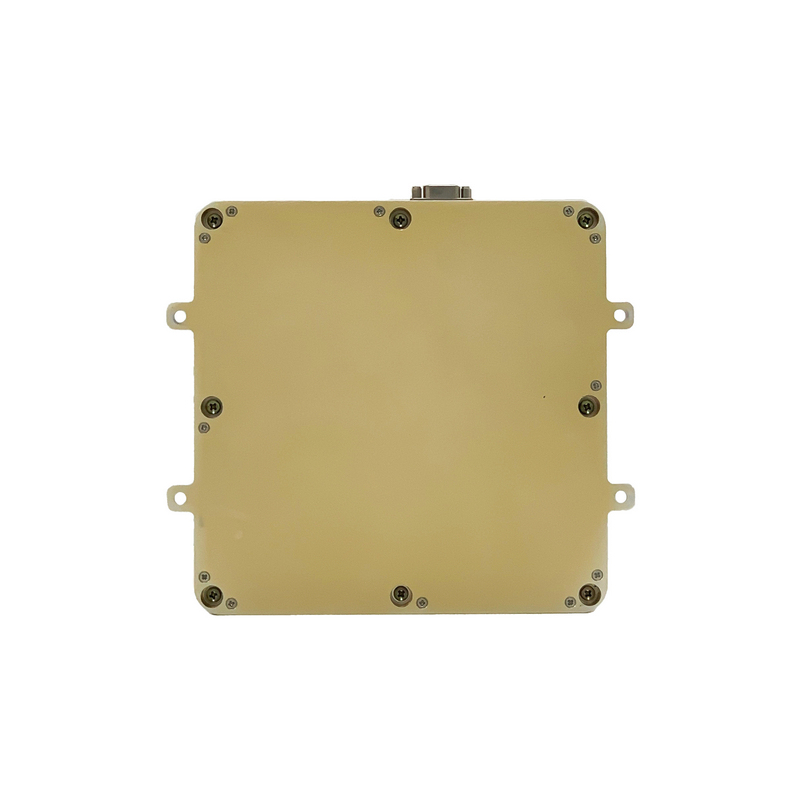

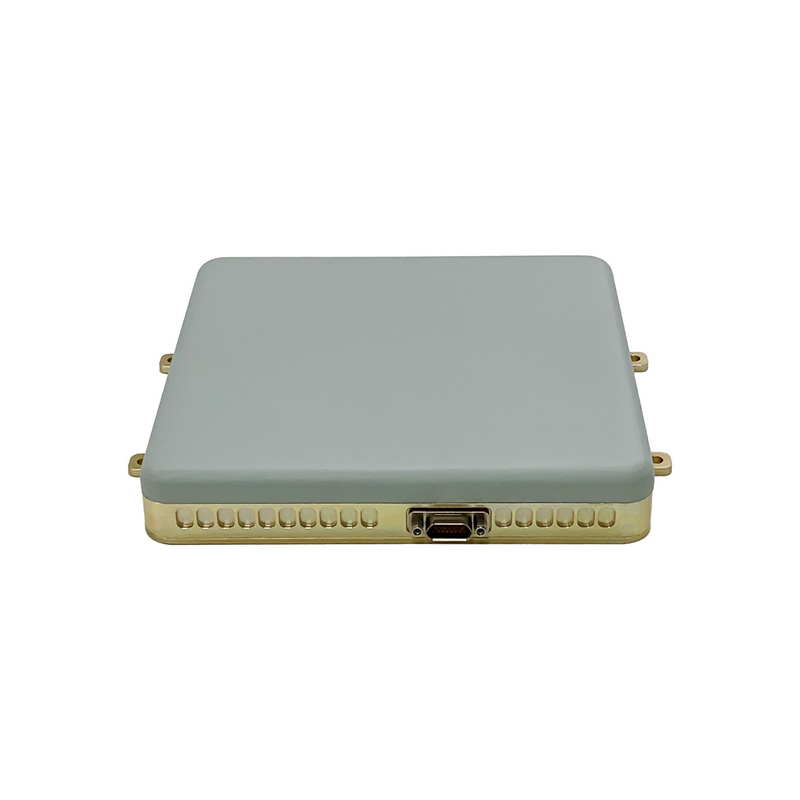

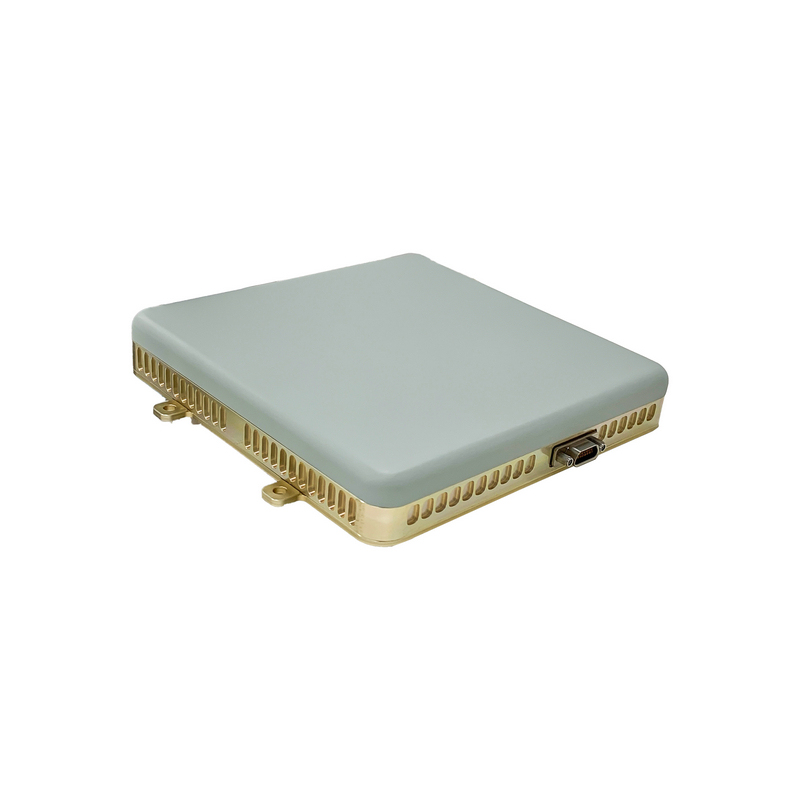

In addition to CRPA, protection performance is further improved using adaptive notch filtering and pulse blanking.
Features:
- Protection against up to 7 jammers
- Easy to install
- Plug and play integration into new or legacy platforms
- Immediate availability for urgent operational needs
- Compatible with all types of external GPS receivers and vehicle navigation systems, including M Code
- Antenna and controller integrated as a single unit
- Light weight and ultra compact size
- Superior suppression performance
- Embedded GNSS receiver option
- Compatibility with military standards
- Resilient PNT
APPLICATION AREAS
- Dismounted Soldier
- Fixed/Rotary Wing Aircraft
- GNSS Guided Missiles
- Unmanned Autonomous Systems
- Armored Land Vehicles
- Small Naval and Coast Guard Platforms
- Maritime EW Protection
- Critical Infrastructure EW Protection
- Advanced Transportation Systems
- Military Communications
Parameters:
Anti-Jamming ability:
Single-direction interference: better than 90dBc
Multidirectional interference: better than 80 dBc
Type of interference:
Induction interference, high power, low power can be prevented.
Band limit Gaussian white interference, spread frequency matching spectrum interference;
Pulse interference and sweep interference;
Mixed interference;
Anti-interference airspace:
angle of orientate:0°~360°,
angle of pitch: -90°~90°

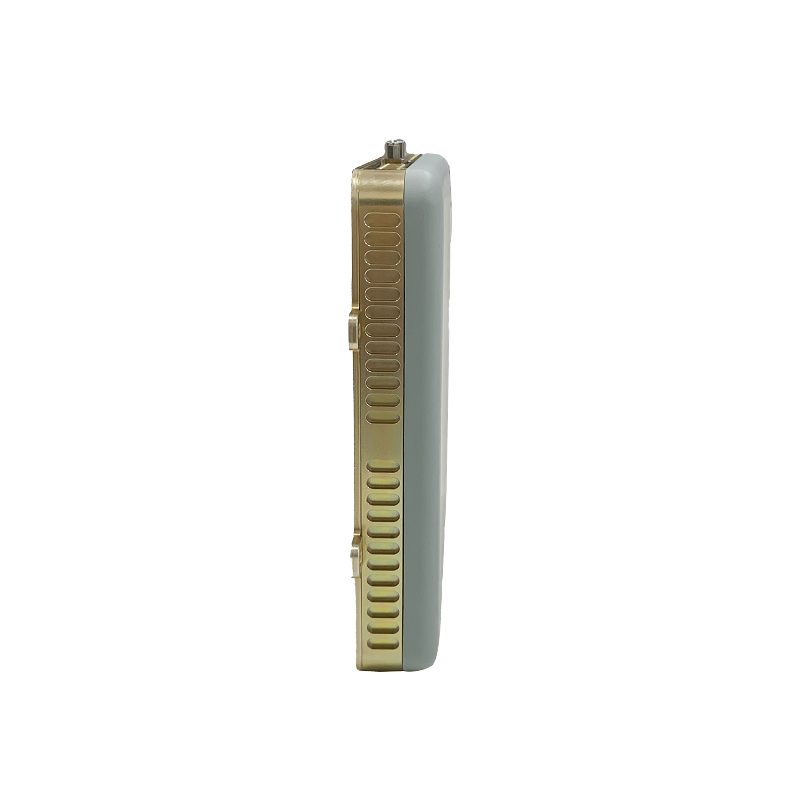

Dimensions: (155±0.5)mm×(171±0.5)mm×(25±0.5)mm
Power consumption: 20W (at room temperature, including positioning module)
Weight: 600g
Identification of four major satellite navigation systems:
|
GP
|
GPS
|
|
GB
|
Beidou system
|
|
GL
|
GLONASS system
|
|
GA
|
GALILEO system
|
|
GN
|
GNSS hybrid
|

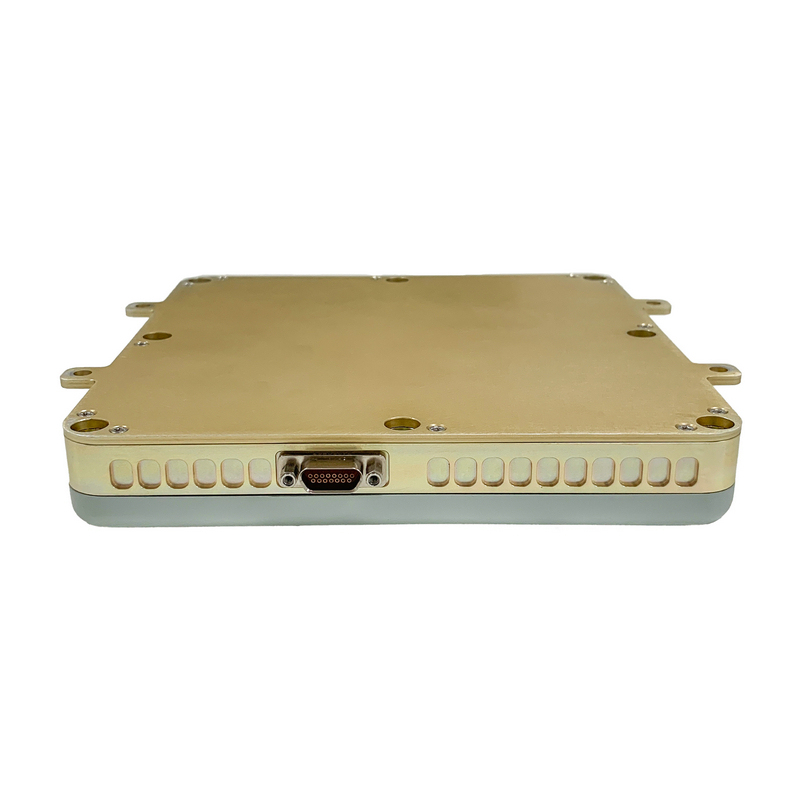

Electrical interface description
The interface definitions are shown in the following table:
Module interface definition
|
order number
|
code name
|
Connector model
|
functional description
|
|
1
|
TX
|
SMA-JYD
|
GNSS RF output port, reserved
|
|
2
|
data
|

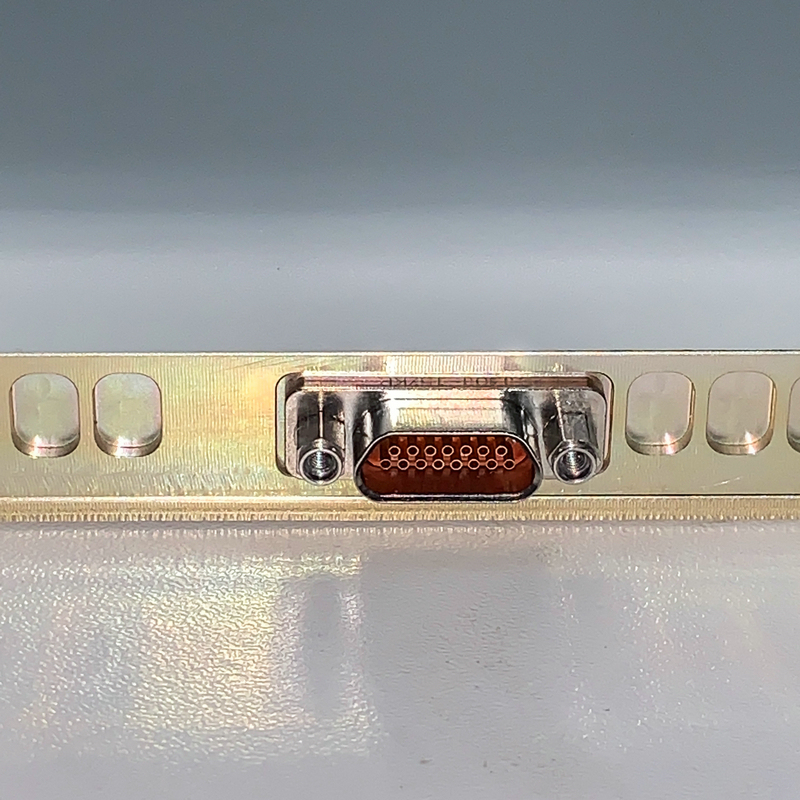

J30J-15ZKP
|
+ 12V power supply input, serial port
|
The data interface pin is defined as shown in the table:
J30J-15 ZKP pin definition
|
Pipe foot number
|
definition
|
remarks
|
|
1/2
|
VCC 12V
|
Power supply
|
|
3/4
|
GND
|
|
5
|
KGR_TXD 1
|
Upgrade the serial port 1, the TTL level
|
|
6
|
KGR_RXD 1
|
Upgrade the serial port 1, the TTL level
|
|
7
|
KGR_TXD 2
|
Upgrade the serial port 2, TTL level
|
|
8
|
KGR_RXD 2
|
Upgrade the serial port 2, TTL level
|
|
9
|
REC_TXD 1
|
Position the module serial port 1, and the TTL level
|
|
10
|
REC_RXD 1
|
Position the module serial port 1, and the TTL level
|
|
11
|
TMS
|
|
|
12
|
TCK
|
|
|
13
|
TDI
|
|
|
14
|
TDO
|
|
|
15
|
VCCV3V3
|
|
Use guidance
In general, this product is relatively simple to use. The following main steps:
- Install fixation with the specified size screws.
- supply electricity. Use XT 30 power supply, power supply voltage 12V, not more than 15V
- Position the data connections. When using the location data, connect the DuPont line TTL serial port of this product to the flight control GNSS serial port.
Notice
This product is designed to improve the security of satellite navigation. Please comply with the relevant laws and regulations during the use. Any illegal activities with the product.
