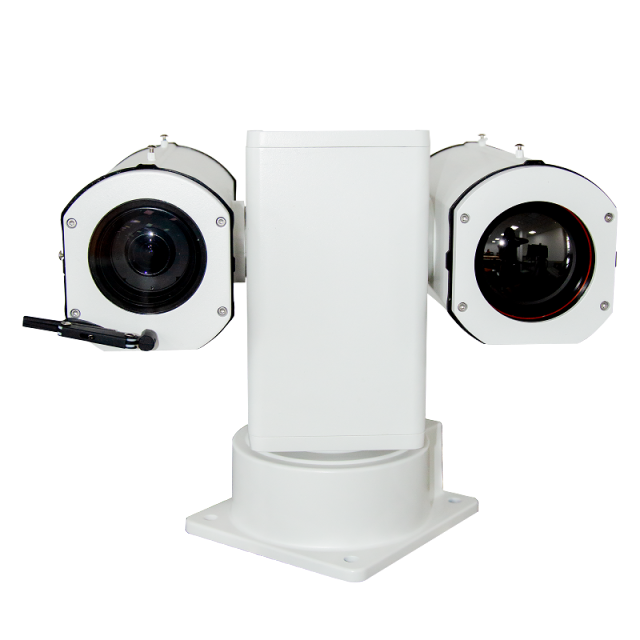

Photoelectric tracker JP1 Series

No.JP1-2
JP1 is a multispectral recognition tracking servo turnable system, applying to low altitude aircraft detection, tracking, recognition and recording usage.
  • Optoelectronic and thermal imaging
  • Easy deployment
  • Auto focus
  • Auto recording
Mode
Visible light imaging & Thermal imaging
Servo Turntable
0-360°
  • photoelectric tracker
camera
anti drone
drone detect
thermal tracker
  • Photoelectric tracker JP1 Series
  • Photoelectric tracker JP1 Series
  • Photoelectric tracker JP1 Series

SPECIFICATION

Multi-Spectral Target Recognition and Tracking Servo Platform

Application

Perimeter safety precautions, rail transit detection, low and slow target tracking, etc

Technical Parameters

Product

Name

Multi-Spectral Target Recognition and Tracking Servo Platform

Model

JP1

Visible

Light

Imaging




Image Resolution

1920*1080 @25fps

Lens  Focal Length

F16.8~269mm(16X optical continuous zoom)

Optical Characteristics

Color, Black and white, Optical fog penetration

Image Adjustment

White balance, Wide dynamic, Gain control

Video Parameters

Brightness, Contrast ratio, Sharpness, Saturation

Focus Mode

Auto/Manual

Performance Index (max)

Detection imaging:≥1.6KM;Tacking:≥1.4KM;Identification:≥1.2KM

(Reference target: 0.35m*0.35m UAV, visibility ≥ 10km, temperature ≤ 20 C °, humidity ≤ 40%)

Thermal

Imaging

Detection Device Type

Uncooled vanadium oxide detector

Thermal Image Resolution

640*512;Encoding Resolution:1280*1024

Lens  Focal Length

75mm

Optical Characteristics

Thermal image black, Thermal image white, Colorize

Performance

Index(max)

Detection imaging:≥1KM; Tracking:≥0.8KM;Identification:≥0.6KM

reference target: 0.35m*0.35m UAV, visibility ≥ 10km, temperature ≤ 20 C °, humidity ≤ 40%)

Servo

Turntable

Turntable Type

Servo direct drive, PID feedback

Horizontal Range

0°~360° Horizontal Key Control Speed:0.1°~80°/s

Vertical Range

-90°~+90° Vertical Key Control Speed:0.1°~60°/s

Angle Deflection Correction

Electronic compensation

Preset Position Accuracy

±0.05°

Smart   Applications & Capabilities

Video compression format

H.256  /  H.264  /  MJPEG(Limited picture capture)

Intelligent guidance

It can receive radar guidance, spectrum guidance, TDOA guidance and multi-point photoelectric positioning guidance

Intelligent search

Full screen moving target search, hot target tracking search

Intelligent tracking

Specific target recognition and tracking, moving target tracking, guidance tracking, manual tracking

Intelligent Recognition

Other than UAV(drones), humans, cars, boats, birds, and animals, there are more than 80 categories of targets.

Network Protocol

IPv4, TCP/IP, UDP, HTTP, DHCP, RTP/RTCP, FTP, UPnP, DDNS, NTP

General

Specifications

Protection Class

IP66, Optional: Three-Proof design

Working Temperature/

Humidity

-35℃~+60℃(-55℃~+70℃),Humidity<90%

Power Supply & Consumption

AC220V ± 15% (photoelectric system) Normal operation ≤ 20W, starting peak ≤ 30W

Dimensions

352mm(W) ×245(L)×275mm(H)

Weight

≤9KG



Product Features

  • Full Automatic Zoom and Focus: Fully automatic zoom and focus with integrated optical defogging and servo tracking.
  • Visible and Thermal Imaging Combination:Visible light and thermal imaging combination with multi-channel imaging and data fusion.
  • Edge Computing and Target Recognition:Built-in algorithms for recognizing over 80 categories of targets including humans, vehicles, ships, etc. Supports specific target detection and identification.
  • Thermal Source Detection and Tracking: Integrated detection, tracking, warning, and alarm for thermal sources.Links with visible light imaging for zoomed-in views and snapshots.
  • Wide Range Design:Horizontal rotation of 0-360° and vertical rotation of -90° to +90°, suitable for close-range target detection and tracking.
  • Accurate Azimuth and Field of View Feedback:Precise azimuth and field of view feedback for physical positioning of moving targets like drones, vehicles, and ships.
  • Low Power Consumption and Lightweight Design:Low power consumption with total power ≤ 20W, and total weight ≤ 9
  • IP66Protection Level:IP66 protection against water and dust, designed for operation in ultra-low temperatures and equipped with shock absorption, suitable for high-level and harsh environments.
  • Integration Options:Can be integrated with radar, GPS positioning, environmental parameters, and power management.
  • Applications: Covers a range of industry applications, including tracking small, slow-moving targets up to 1-2 kilometers in the air, and typical targets on land or sea up to 1-3 kilometers away, such as humans, vehicles, and ships.
